AC and DC Power Supplies

PSW-Series

• Products Feature

• Voltage Rating : 30V/80V/160V/250V/800V, Output Power Rating : 360W~1080W
• Constant Power Output for Multi-Range, ( V & I ) Operation
• C.V / C.C Priority ; Particularly Suitable for the Battery and LED Industry
• Series Operation (2 units in Series)for(30V/ 80V/160V), Parallel Operation(3 units in Parallel) for (30V/80V/160V/250V/800V)
   • High Efficiency and High Power Density

• 1/2, 1/3, 1/6 Rack Mount Size Design ( EIA/JIS Standard ) for 360W, 720W, 1080W

• Standard Interface : LAN, USB, Analog Control Interface

• Optional Interface : GPIB-USB Adaptor,RS232-USB Cable

• LabVIEW Driver

PSU Series

• Products Feature

• Voltage Output : 6V/12.5V/20V/40V/60V/ 100V/150V/300V/400V/600V

• Power Output : 1200W ~ 1560W

• C.V/C.C Priority Mode

• Adjustable Voltage/Current Rise and Fall Time

•Series/Parallel Connection : Max. 2 units (Models Under 300V)/4 units of The Same Mode

• High Efficiency and High Power Density

• 1U Height and 19”Rack Mount Size

• Three sets of Preset Function

• Bleeder Control Function

• Internal Resistance Function

• PProtection : OVP, OCP, OHP, UVL, AC Fail,FAN Fail

• Standard : USB, LAN, RS-232, RS-485, Analog Control

• Option : GPIB, Isolated Analog Interface (Voltage Control/Current Control)

PLR Series

• Products Feature

• Output Power:36 360 W/ 720W

• Low Rippele and Noise(0.5m Vrms/ 10m Arms)

• Fast Transition Recovery Time (100µs)

• Equipment Power Factor correction Circuit for AC _input 100-240VAC

• Maximum 2 units i series Conections or 3 units in parallel connection

• Select the setting Digits for Voltage and currentn(Course / Fine Volume control)

• Panel Lock FUnction /3 set of preset Function.

• Output Off Timer Function (Range : 1 min to 1000 hours & 59mins)

• CC Pririty Function (Prevent Overshoot & inrush current))

• Sequence Functionof PC Editing (Max:100 steps / Min.step Period:50ms)

• Protectio :OVP, UVP, OCP Remote Sensing (Terminal Open)

• External Amalog Control Function

• PC Remote Interface Standard: RS-232

• PC Remote Interface Standard: LAN . USB. GPIB/ USB External Anlog Control

GPP Series

• Products Feature

• 4.3”TFT LCD Display

• Supports Setting Value, Measurement Value and Output Waveform Display

• Load Function (CC, CV, CR Mode)

• Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA

• Low Ripple Noise: ≦350uVrms/ ≦2mArms

• Transient responsee Time: ≦50uS

• Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection

• Delay Function / Output Monitoring Function / Output Recorder Function

• Intelligent Temperature Control Fan Effectively Reduces Noise

• Sequential Output Function and Built-in 8 Template Waveforms

• Sequential Output Function and Built-in 8 Template Waveforms

GPE-X323

• Products Feature

• Setting & Read Back Resolution 100mV/10mA (*1)
• Output On/off
• Analog Control (Remote I/O) For Output ON/OFF
• Set View Function For Checking an Original V/I Setting During Output On
• Key Lock Function
• Tracking Series And Parallel Operation
• Smart Cooling Fan Achieving Low Noise
• Optional European Jack Type Terminal

GPS Series

• Products Feature

• Light and Compact Design

• 0.01% High Regulation

• Constant Voltage and Constant Current Operation

• Remote Control for External Programmability

• Internal Select for Continuous or Dynamic Load

• Low Ripple and Noise

• Overload and Reverse Polarity Protection

• Series or Parallel Operation

• Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD

GPR Series

• Products Feature

• 0.01% High Regulation

• Constant Voltage and Constant Current Operation

• Internal Select for Continuous or Dynamic Load

• Low Ripple and Noise

• Overload and Reverse Polarity Protection

• 3 1/2 Digit 0.5" LED Display

• Internal Select for Continuous or Dynamic Load (for GPR-3510HD/GPR-6060D/GPR-7550D)

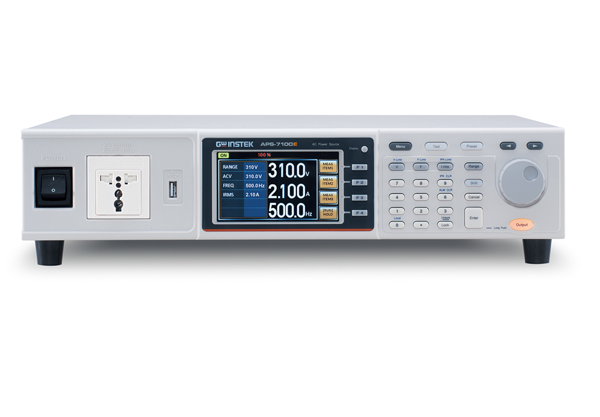

APS Series

• Products Feature

• 4.3” large LCD Display

• Output Capacity:APS-7050E(500VA, 310Vrms, 4.2/2.1Arms)APS-7100E(1000VA, 310Vrms, 8.4/4.2Arms)

• Measurement Function : Voltage, Current, Power, Frequency, Power Factor, Ipeak

• Reverse Current Alarm Function

• 10 Sets of The Test Mode Simulate Power Transient Output

• 10 Sets of Preset Allow Users to Store Ten Settings

• OCP/OPP/OTP Protection

• Variable Voltage, Frequency and Current Limiter

• Universal Power Inlet

ASR Series

• Products Feature

• Output Rating: AC 0 400 Vrms, ~ DC 0 ~ ± 570 V

• Output Frequency up to 999.9 Hz

• DC Output (100% of Rated Power)

• Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF

• Voltage and Current Harmonic Analysis(THDv, THDi)

• 1 Remote Sensing Capability

• * OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm

• Support Arbitrary Waveform Function

• Output Capacity: 2kVA/ 3kVA/4kVA

• Customized Phase Angle for Output On/Off

• Sequence and Simulation Function (up to 10 sets)

• Interface(std):USB,LAN,RS-232,GPIB

• Built-in External Control I/O and External Signal Input

• Built-in Output Relay Control

• Memory Function (up to 10 sets)

• Built-in Web Server
